Area Series - Small
The OLA1 Small Series is a stylish aerodynamic area luminaire that fits within today’s accepted design form factors. Excellent optical performance is achieved with Nichia brand LED’s and engineered discrete optics. LED life is assured through efficient thermal coupling and dissipation via a durable, pressure die cast, low-copper alloy, aluminum housing. Engineered to last, all gaskets are anti-UV, anti-aging with no harmful out-gassing. All models come standard with a universal pole mount bracket or an optional wall surface box. Luminaries are available with a number of options including alternate CCT choices, finishes, photocells and occupancy sensors.
Features
- LED Brand: Nichia
- Color Temperatures: 4000K & 5000K
(Other CCT’s are available upon request)
- CRI: 70
- Lumen Maintenance: L70 = 50,000 hours (at 25°C)
- Full Cutoff (meets IDA criteria)
- Operating Temperature: -40°C (-40°F) to 40°C (104°F)
- Durable All Aluminum Pressure Die Cast Housing
- Powder Coat Finish
- Salt-Fog Tested to 2500 hours / per ASTM B117
- IP65 Rated (wet listed NEMA / IEC 60529)
- Mounting: Universal Round or Square Pole, Optional Wall Surface Box
Electrical Specifications
- Power Input: 120-277V (347-480V Optional)
- Power Factor: >0.95
- THD: < 15%
- Surge Protection: 20 kV
- Control Options: 0-10V Dimming Standard (Photocell and Occupancy Sensors Optional)
Test & Certifications
- ETL (UL 1598, UL 8750, NEMA C82.77)
- CSA (C22.2 No.250.0)
- RoHS Compliant
- Design Lights Consortium (Premium)
- 3G Vibration tested (ANSI C136.31)
Warranty
- Up to 10 – Year warranty (Parts or Replacement)
Spec Sheets
OLA1 Area Series Small Spec sheet
(click to download)
OLA1 Universal Mounting Bracket for Round Poles Spec sheet
(click to download)
OLA1 Mounting Bracket for Square Poles Spec sheet
(click to download)
OLA1 TA Top Tenon Adapter Spec sheet
(click to download)
IES Files
OLA1 Type 2
OLA1 Type 2 – Backlight Control System
OLA1 Type 3
OLA1 Type 3 – Backlight Control System
OLA1 Type 3 Left
OLA1 Type 3 Right
OLA1 Type 4
OLA1 Type 4 – Backlight Control System
OLA1 Type 4 Left
OLA1 Type 4 Right
OLA1 Type 5
1. Series
OLA1 = Optec LED Area Light
2. Size / Wattage
080 = 80W
120 = 120W
150 = 150W
3. Voltage
UNVL = 120-277V
UNVH =347-480V
4. Color Temperature
30 = 3000K
40 = 4000K
50 = 5000K

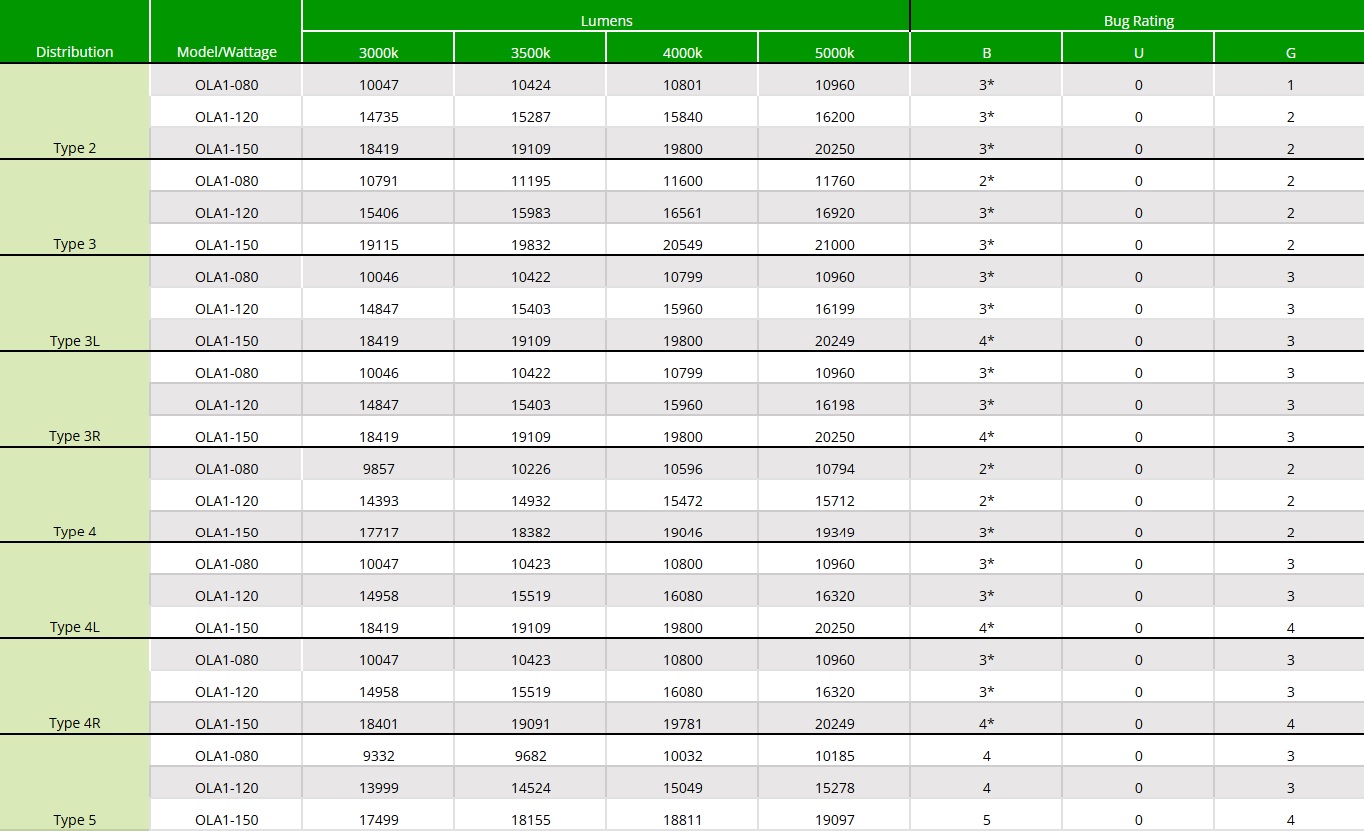

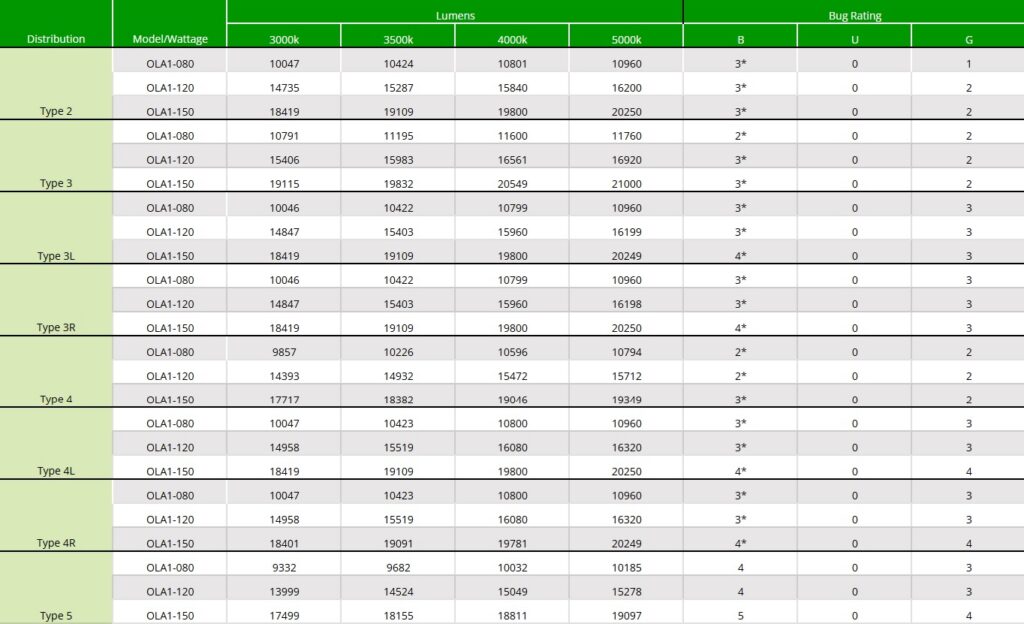

5. Distribution
2 = Type 2
3 = Type 3
3L = Type 3 Left
3R = Type 3 Right
4 = Type 4
4L = Type 4 Left
4R = Type 4 Right
5 = Type 5
6. Mount
SQ = Square Pole 1
RD = Round Pole 1
WM = Wall Mount 1,2
TA = Tenon Adapter 1,2
LK = Leveling Kit 3
7. Finish
WH = White
BZ = Dark Bronze
BL = Black
NA = Natural Aluminum
CC = Custom Color
8. Controls / Options
OSWS = Occupancy Sensor (WattStopper) 4
PR3 = Photocell Receptacle 3-pin
PR5 = Photocell Receptacle 5-pin
PR7 = Photocell Receptacle 7-pin
WCS = Wireless Control (Synapse) 5
BC = Backlight Control
SF = Single Fuse (120V, 277V, 347V)
DF = Double Fuse (220V, 240V, 480V) TLSC = Twist Lock Shorting Cap
924R = UL924 Relay
TL12 = Twist Lock Photocell 120V 6
TL24 = Twist Lock Photocell 240V 6
TL27 = Twist Lock Photocell 277V 6
TL28 = Twist Lock Photocell 208V 6
TL34 = Twist Lock Photocell 347V 6
TL48 = Twist Lock Photocell 480V 6
Notes
1 – For details, reference accessory data sheet.
2 – WM option requires SQ pole mount bracket (ordering example: SQ-WM)
3 – Leveling kit adjusts up by 5 degrees or down by 5 degrees
4 – OSWS = For Wattstopper PIR sensor information and options contact factory
5 – WCS = for Synapse wireless controls information and options contact factory for details
6 – Photocell default = Fail in “ON” mode (unless otherwise specified)
