Parking Garage
Optec LED Lighting’s OLPG1 Series Garage Light is a stylish, low-profile luminaire designed optically for lighting parking garages. Excellent optical performance is achieved via edge lighting and delivered through a UV-stabilized, specially-designed lens. LED life is enhanced through efficient thermal coupling and dissipation through its durable pressure die-cast, low copper alloy aluminum housing. OLPG1, engineered to last using high-performance gaskets, coatings, and proven-sealing techniques make it ideal for all weather conditions. The OLPG1 Garage Luminaire is available with several options including alternate CCT choices, multiple finishes, occupancy sensors and other accessories. Tooled, die-cast and completely assembled in the USA.
Features
- Die-cast low-copper-alloy aluminum housing cast in Wisconsin
- Low-glare diffusing lens with (5) distribution patterns
- Color Temperature: 3000K, 4000K, & 5000K
- CRI: 80 Standard, 90 Optional1
- Uplight Optional (Approximately 800 lumens)
- Full Cutoff
- Operating Temperature: -40°C (-40°F) to 40°C (104°F)
- Available in (4) standard colors
- High-performance Nichia LEDs
- Lumen Maintenance: L90=>60,000 hours at up to 50°C ambient
- Long-life durable powder coat finish (custom colors are available upon request)
- IP66 Rated (wet listed)
1 Consult Factory
2 Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualifid Products Lists to confirm wich versions are qualified.
Electrical Specifications
- Power Input: 120-277V (347-480V Optional)
- Power Factor: >0.95
- Efficacy: U to 130 LPW
- Surge Protection: 6kV Standard, additional 10kV optional
- THD: <15%
- Control Options: 010V dimmin
Test & Certifications
- ETL (UL 1598)
- CSA (C22.2 No.250.0)
- RoHS Compliant
- Meets DLC 5.1 and DLC 5.1 Premium2
- All models meet Buy American ACT
Warranty
- 5 – Year warranty (Parts or Replacement)
- Other warranty options available. Please consult factory.

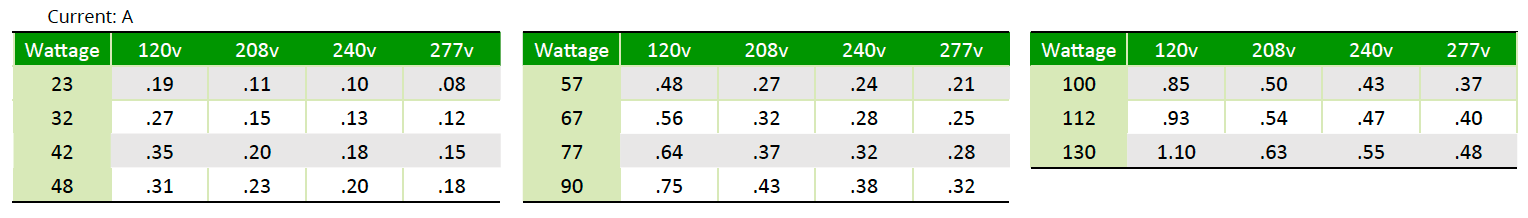

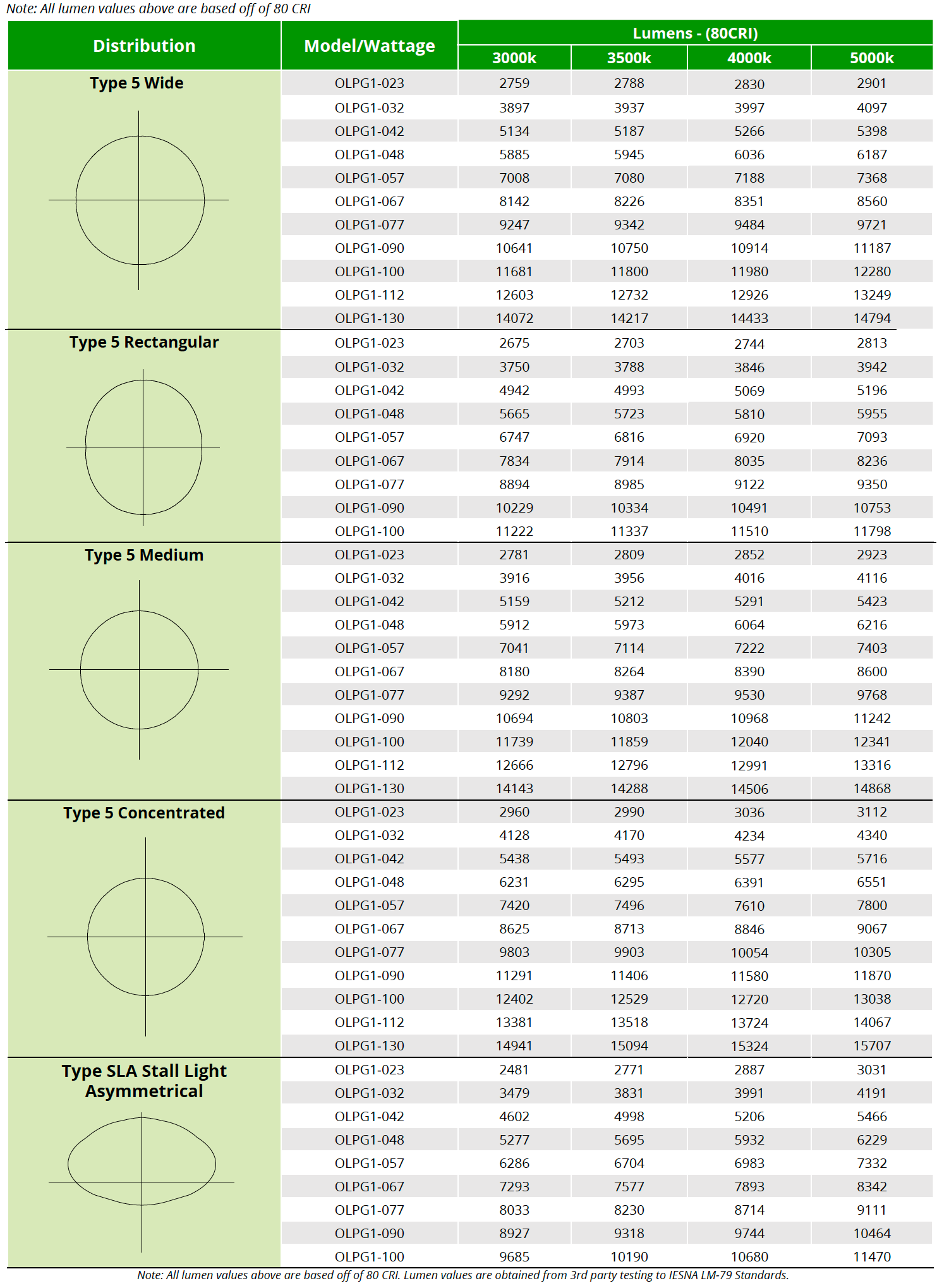

Performance Specifications

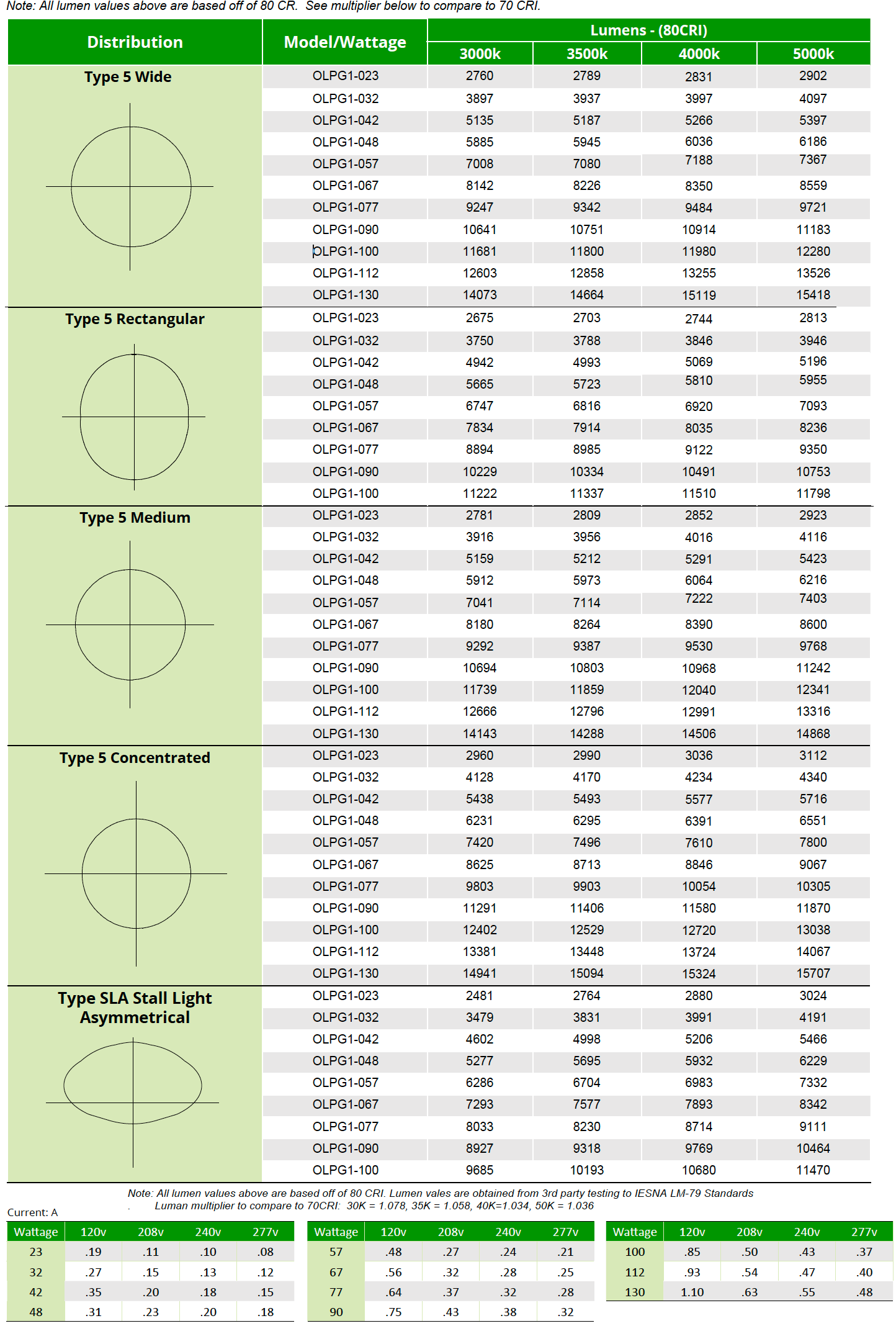

Note: All lumen values above are based off of 80 CRI. Lumen values are obtained from 3rd party testing to IESNA LM-79 Standards.
Use the following lumen multiplier to compare to 70CRI: 30K = 1.078, 35K = 1.058, 40K=1.034, 50K = 1.036
Published luminaire photometric testing performed to IESNA-79-08 standards

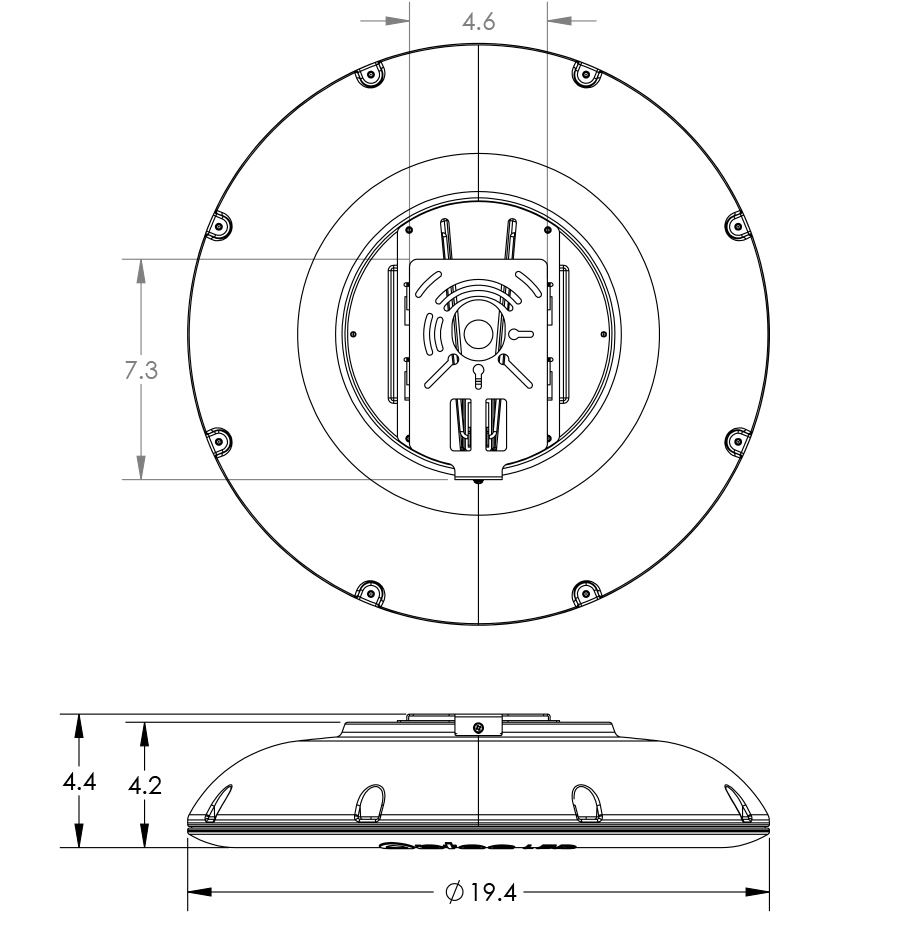

Dimensions & Weights
Published luminaire photometric testing performed to IESNA-79-08 standards
Photometric Performance
IES Files
OLPG1 5W Distribution
3000K
3500K
4000K
OLPG1 5R Distribution
3000K
3500K
4000K
OLPG1 5M Distribution
3000K
3500K
4000K
OLPG1 5C Distribution
3000K
3500K
4000K
OLPG1 SLA Distribution
3000K
3500K
4000K

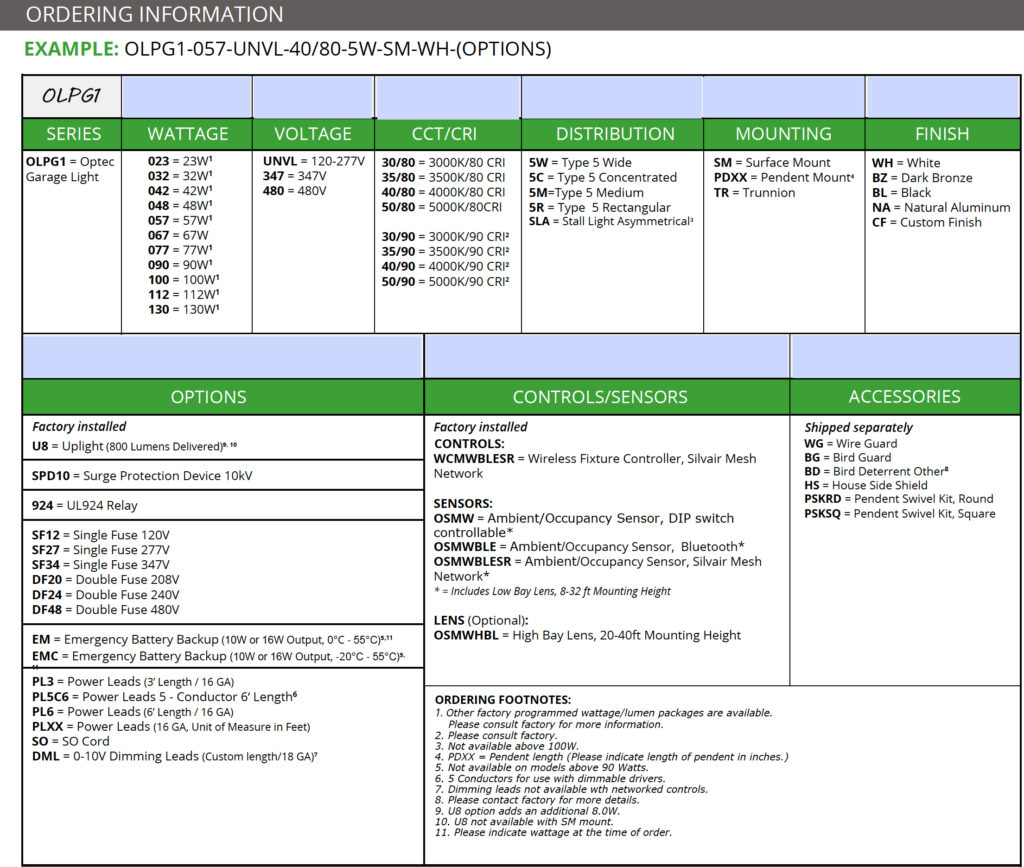

Ordering Information
EXAMPLE: OLPG1-057-UNVL-40/80-5W-SM-WH-(OPTIONS)
